$59.66 ~~$93.23~~

Taxes and shipping calculated at checkout.

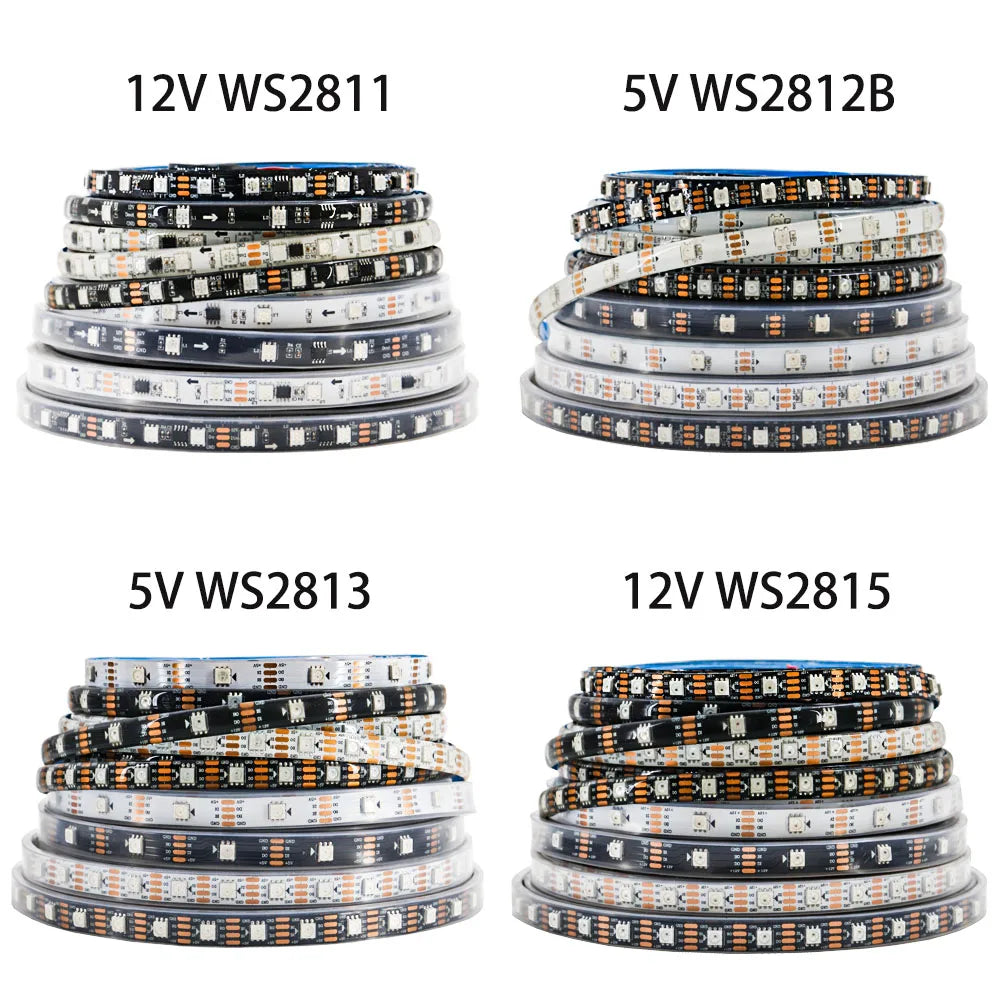

WS2812B WS2811 WS2813 WS2815 5050 RGB Smart LED Strip Lights WS2812 Individually Addressable IC 30/60/144Pixels/Leds/m Tape

Name: WS2812B WS2811 WS2813 WS2815 5050 RGB Smart LED Strip Lights WS2812 Individually Addressable IC 30/60/144Pixels/Leds/m Tape
Rating: 4.95 (100 reviews)

(100)

Description

SPECIFICATIONS

Average Life (hrs): More than 50000Hours

Choice: yes

Color Temp(K): 2200-6500K

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: no

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 30/60/144Leds/m

Luminous Flux: 249-2000

Model: WS2812

Model Number: 5050 led strip

Model1: WS2812B

Model2: WS2813

Model3: WS2815

Model4: WS2811

Nominal Voltage: 5V/12V

Occasion: Living room

Power Consumption (W/m): 5.76W/m,11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 50

Strip type: SMD

Voltage: 12 V

WS2811 Voltage: DC12V

WS2812B Voltage: DC5V

WS2813 Voltage: DC5V

WS2815 Voltage: DC12V

Waterproof: Yes

semi_Choice: yes

Pay Attention：

1. Led strip welded by 0.5m is very normal in an electronic product,not a quality problem.if you mind this, do not place order！

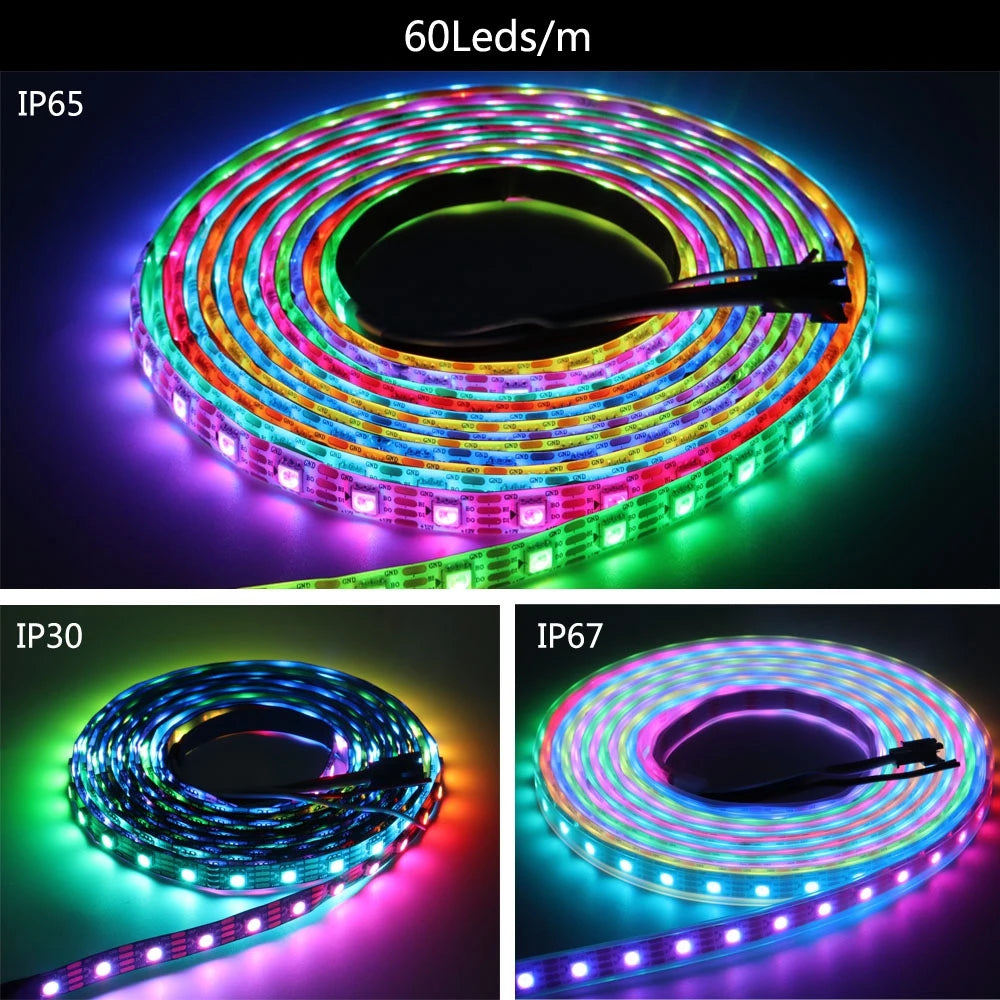

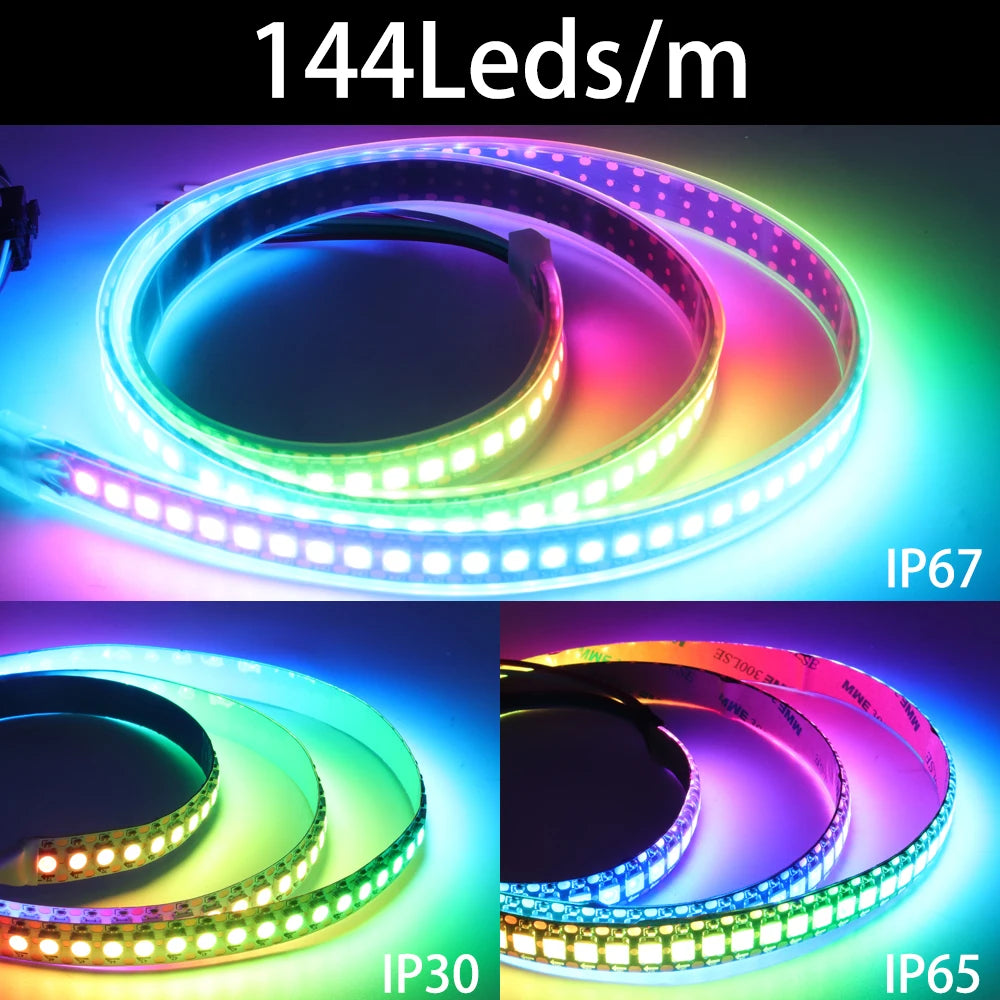

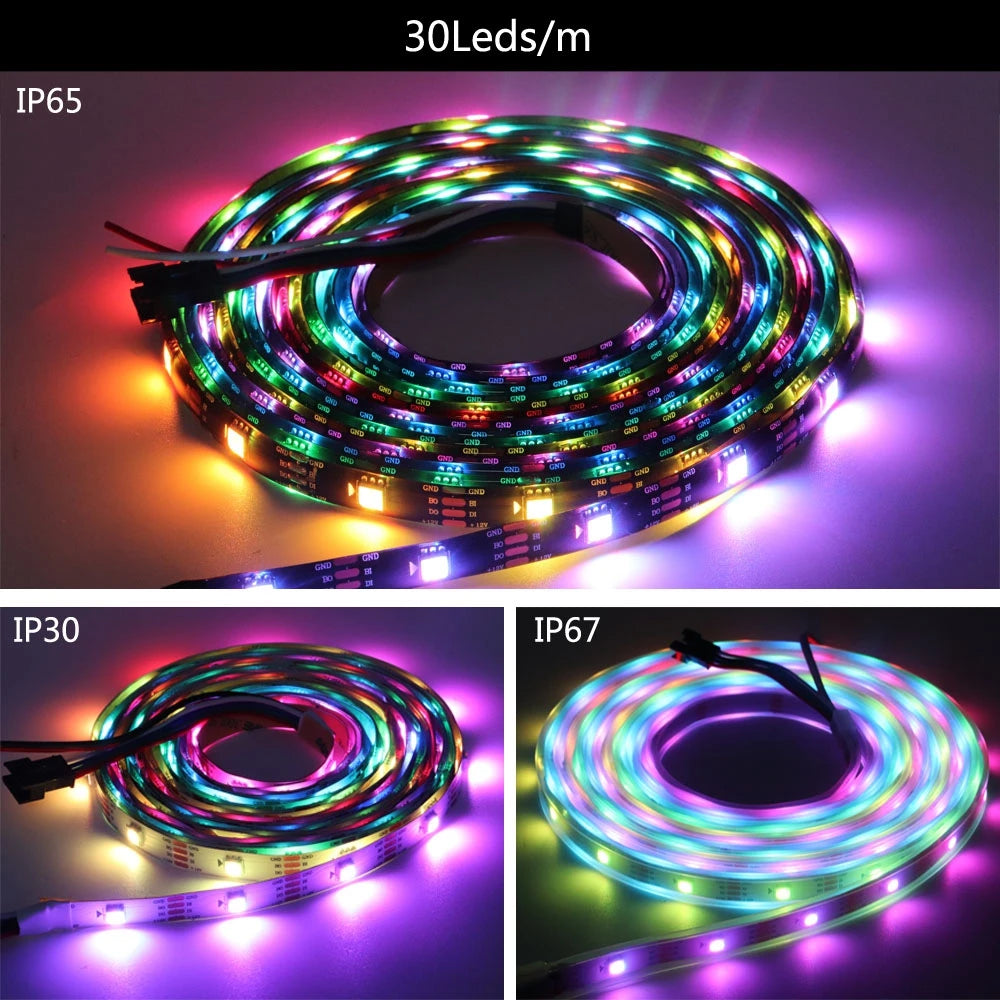

2. IP30: Non- Waterproof

IP65: Waterproof in Silicon Coating

IP67: Waterproof in SiliconTube (No Double-sided Adhesive)

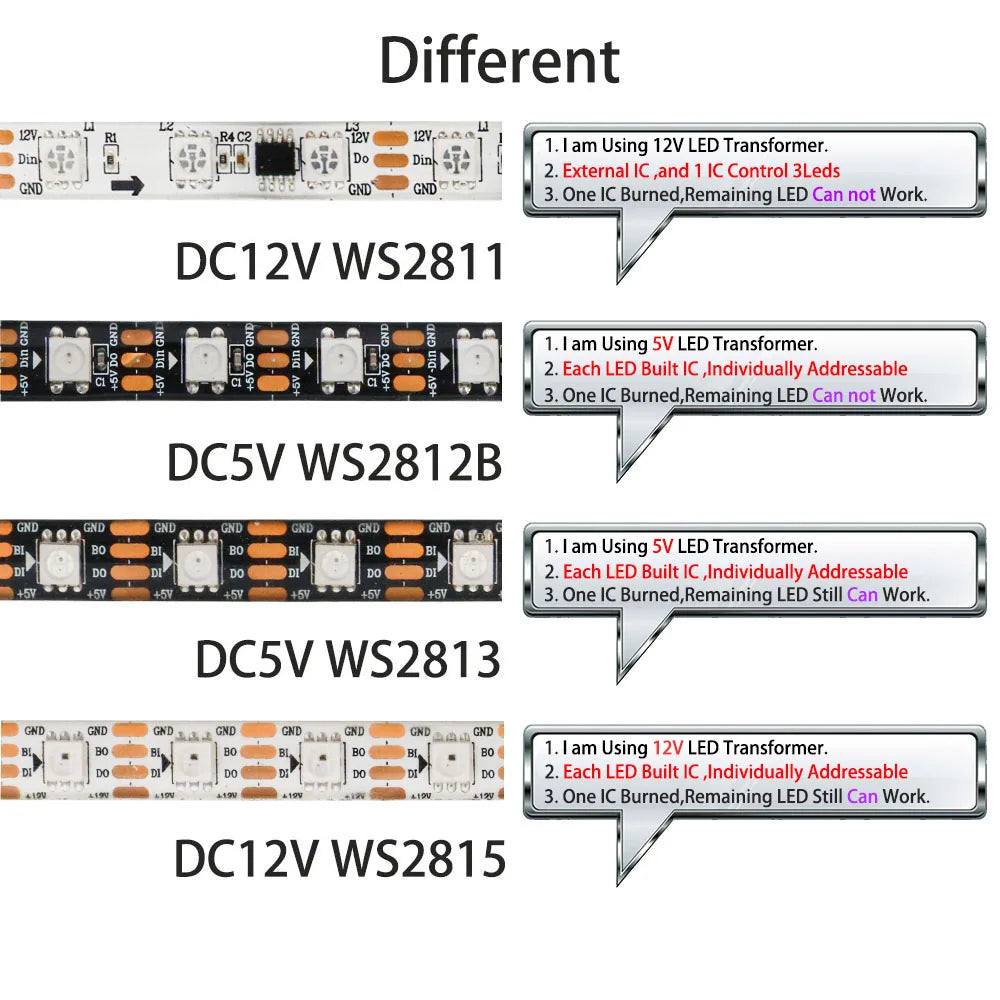

~WS2812B / WS2813 Must Use DC5V Led Power Supply

~WS2811 / WS2815 Must Use DC12V Led Power Supply

This link is not include power supply and not include led controller,please know it

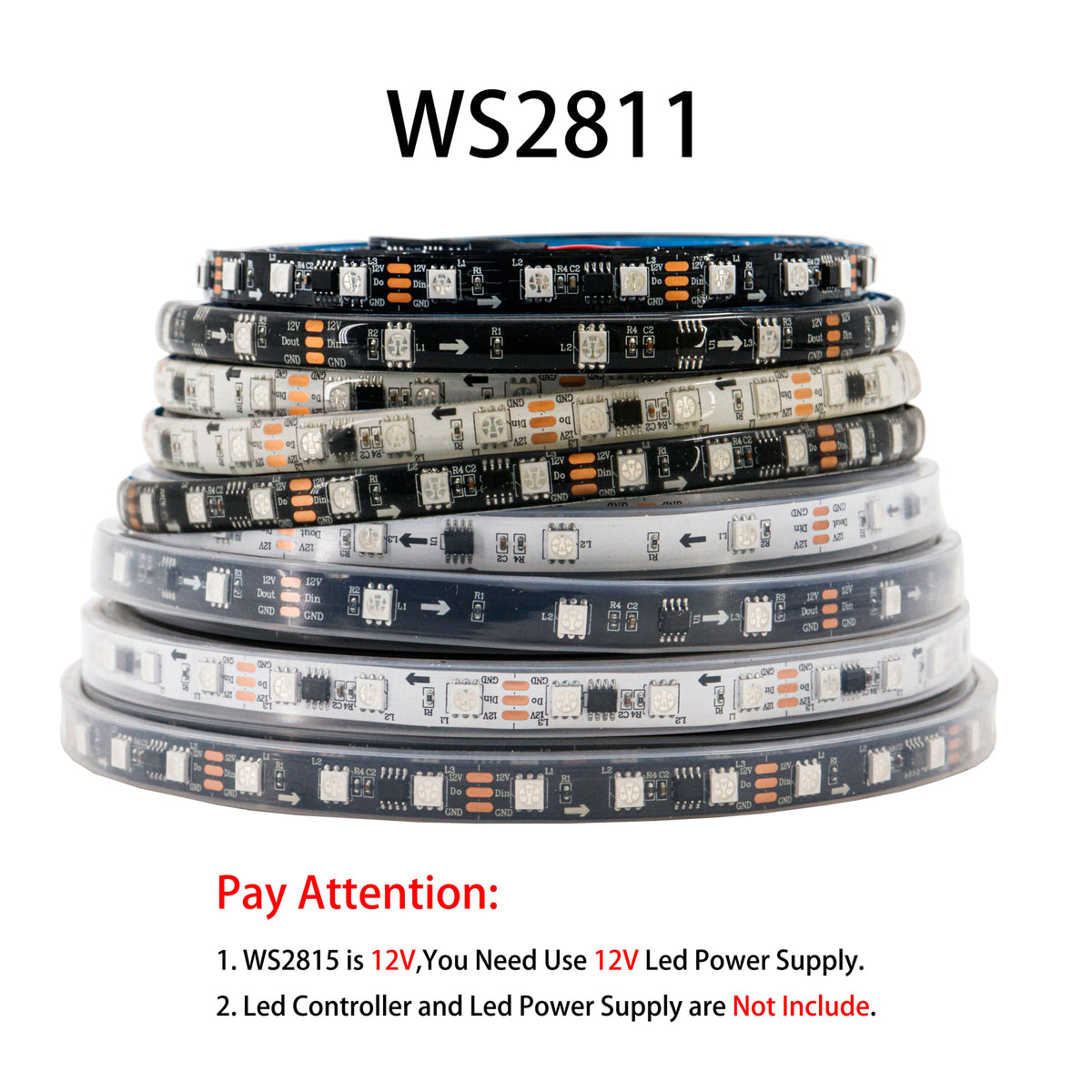

WS2811 LED Strip:

(1) Working Voltage: DC 12V

(2) LED Source: SMD 5050 RGB

(3) LED Chip: Epistar

(4) LED QTY: 30/60 LED / M

(5) IC QTY: 10/20M

(6) Power: 9/18W /M

(7) Grey scale: 256 / Color

(8) Cutability: 3 led / cutting (Similar WS2811, 1 ic control 3 LED)

(9) Beam Angle: 120 °

(10) Color Mode: 133Pattern & 100 Speeds

(11) IP Grade: ip30 non -waterproof / ip67 waterproof

(12) Dimension: 5000 x 10 x 2.4mm

(13) Packaging: 5m/roll 12v WS2811 RGB Strip + 3Pin Connector

(14) Warranty: 2Years

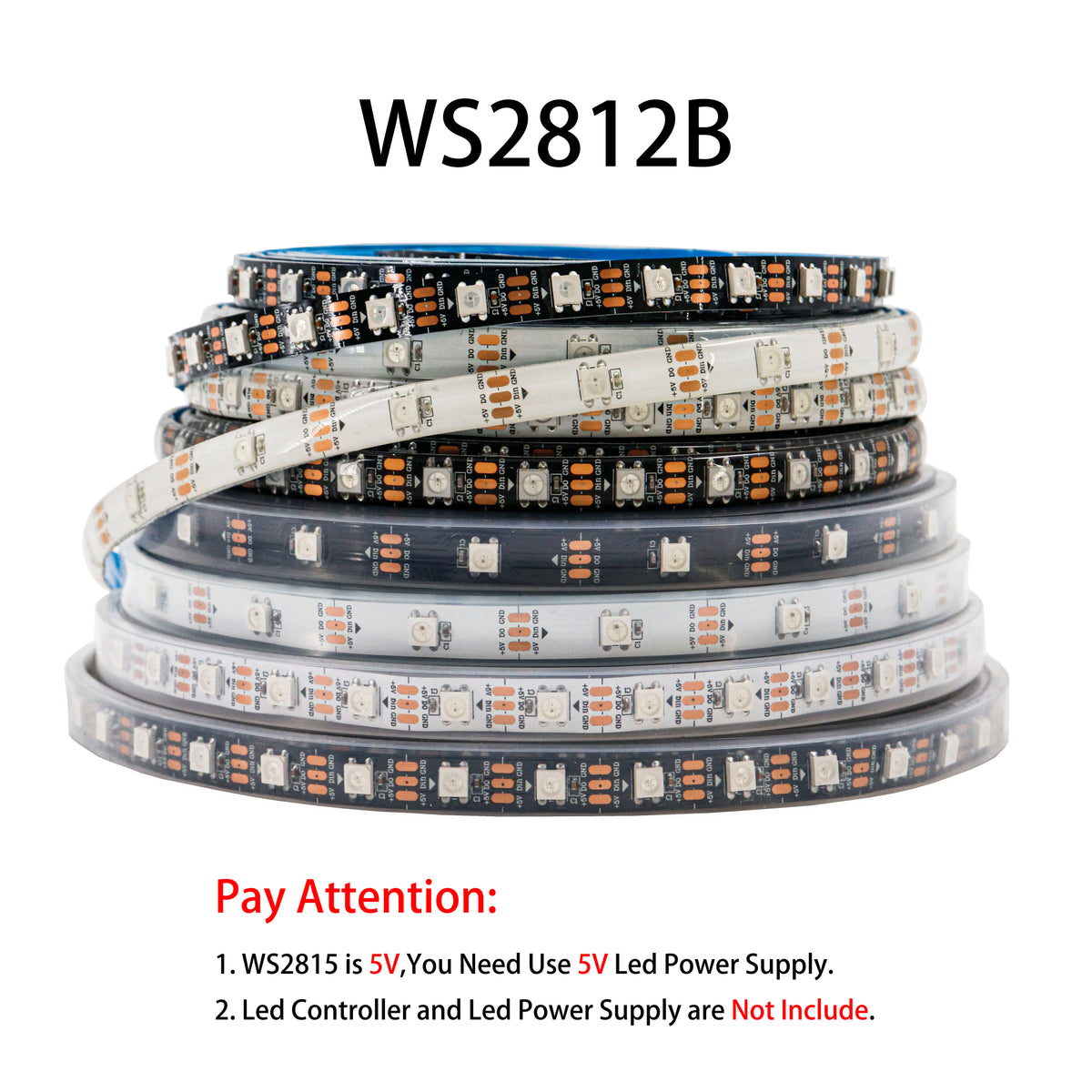

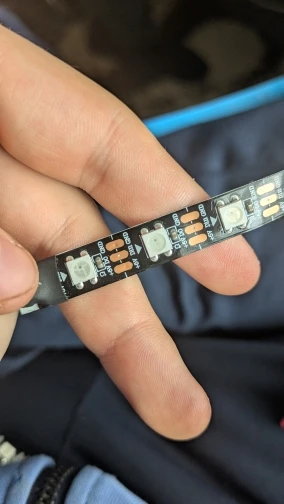

WS2812 LED Strip:

Input Voltage: DC5V

Power:

30Leds/m----9Watt/meter

60Leds/m----18Watt/meter

144Leds/m----43.2Watt/meter

LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)

LED: Each Led is Separately Controlled

IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)

Of IC: 1 IC Drives 1 Led Chip

Pixels: 30/60/144/Meters

Pitch: 16.6mm(1000/64)

Grey Scale: 256

Bits/Color: 8-Bits/Color

FPC Width:

30Leds/m----10mm

60Leds/m----10mm

144Leds/m----12mm

FPC color: Black/White

Protection Rate: IP30/ IP65 /IP67

Colors: Full Color RGB, Dream Color Changing

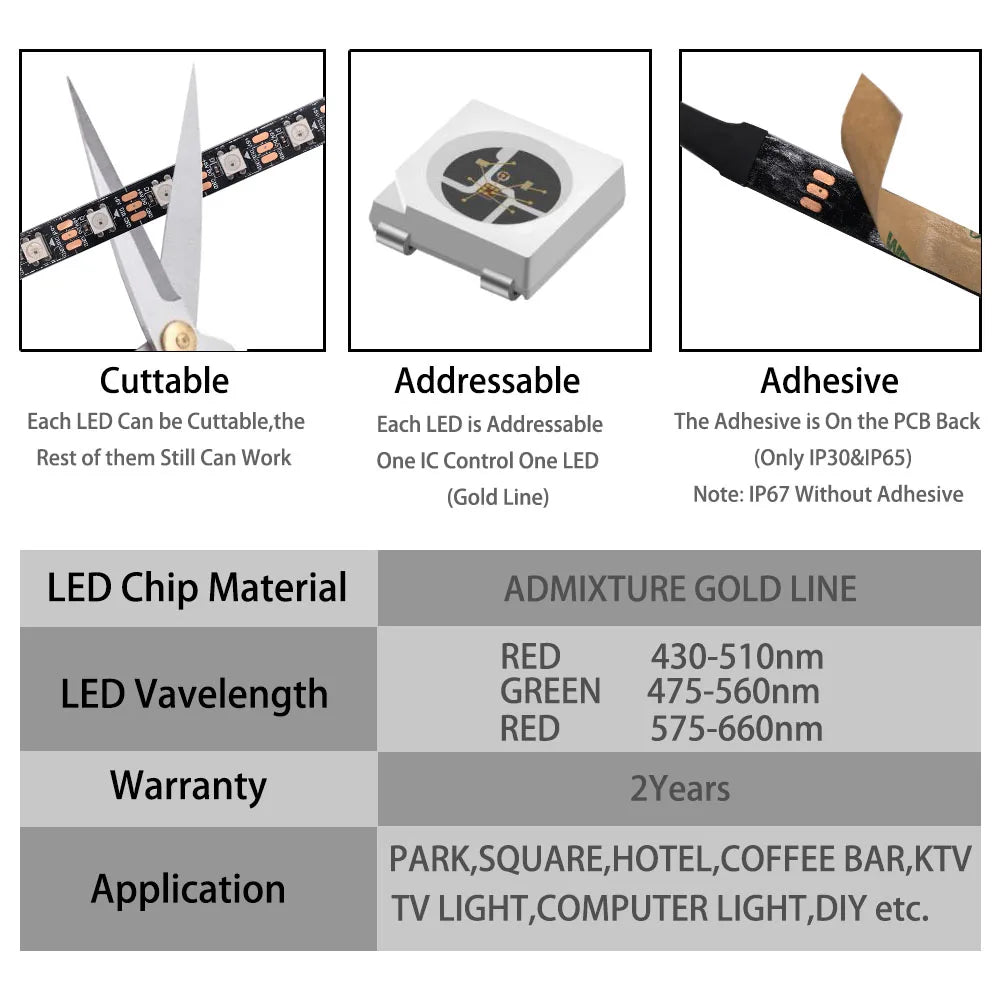

Cuttable: Every LED is Cuttable

Package:In Anti-Static Bag,IP30 IP65 With 3M Adhensive Tape On The Back(IP67 Without 3M Adhensive)

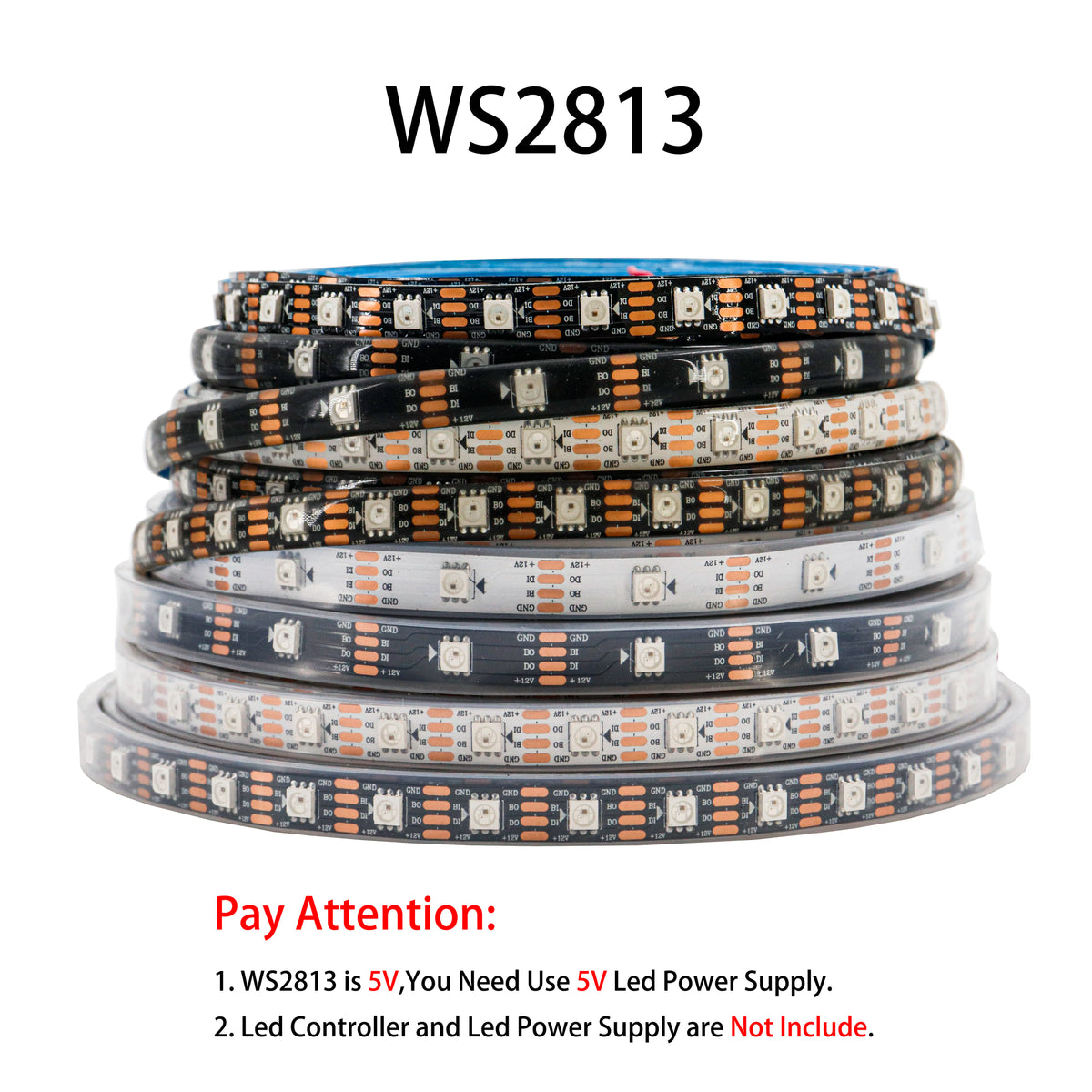

WS2813 LED Strip:

Input Voltage: DC5V

Power: 30 Leds/M --- 9 Watt/Meter / 60 Leds/M --- 18 Watt/Meter / 144 Leds/M --- 43.2 Watt/Meter

LED Resource: WS2813 led (5050 SMD RGB LED with built-in improved version of ws2811 ic)

LED: Each LED is separately controlled

IC Type: Improved version ws2813 IC(built inside the 5050 smd rgb led)

Of IC: (1 IC Drives 1 led chip)

Pixels: 30Leds/60Leds/144Leds/meter

Pitch: 16.6mm(1000/64)

Grey Scale: 256

Colors: Full color RGB, dream color changing

Bits/Color: 8-Bits/Color

FPC Color: BLACK / White

FPC Width: 30 Leds/M --- 10 MM / 60 Leds/M --- 10 MM / 144 Leds/M --- 12 MM

Protection Rate: IP30 Non-Waterproof / IP65 Waterproof in Silicon Coating / IP67 Waterproof in Silicon Tube

Cuttable: Every LED is cuttable

Package: In anti-static bag, IP30 IP65 with 3M adhensive tape on the back (IP67 without 3M adhensive), each strip with one free male connector for connector

Working Temperature: -40 - 70 °C

Storage Temperature: -50 - 80 °C

Source Life: 50,000 hours

Connector: 4PIN connector terminal pair (Red: 5V power, Green: Date line, Blue: standby date line, Black: GND)

Recommand controllers: T-1000s,T-8000A;T-100K;T-200K;T-300K

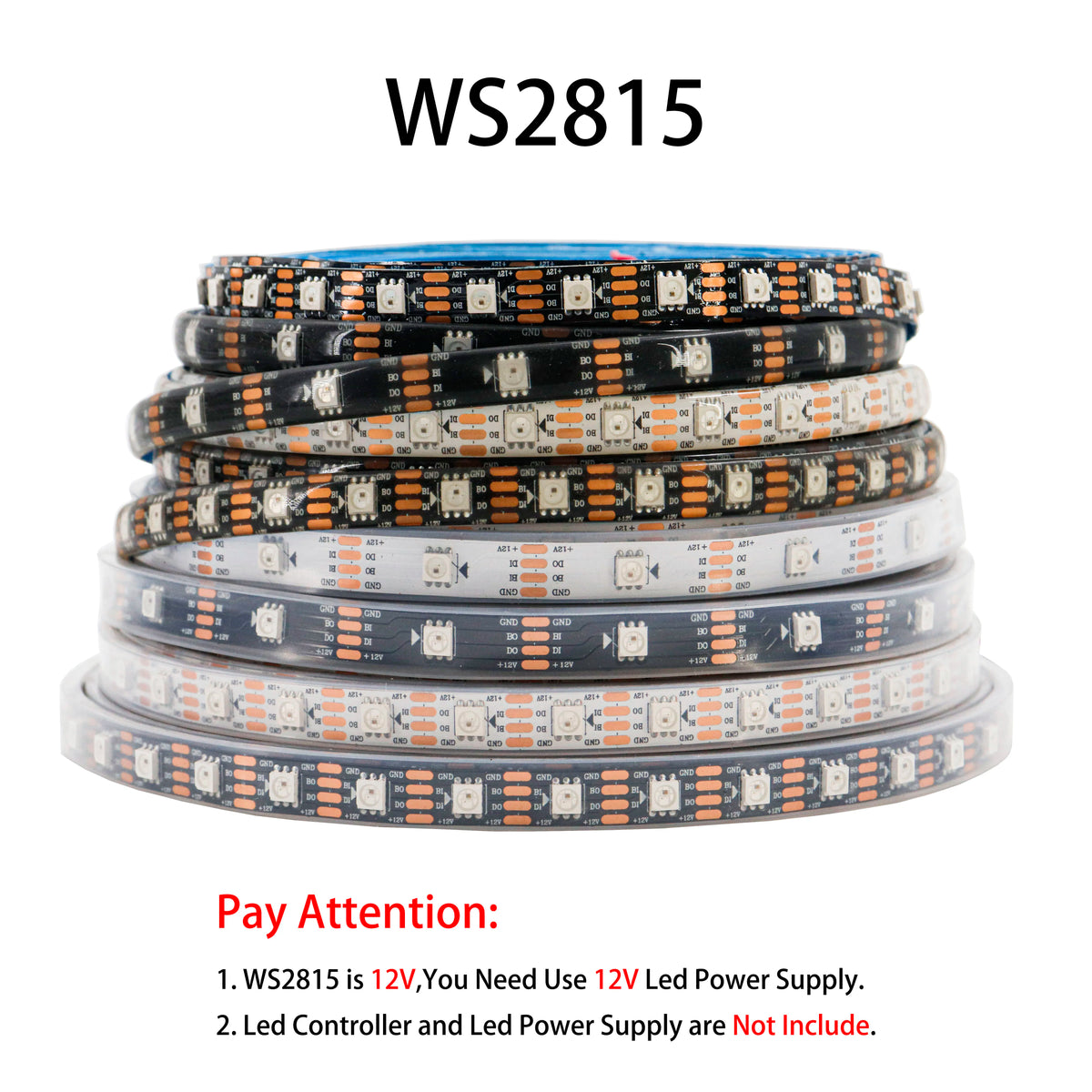

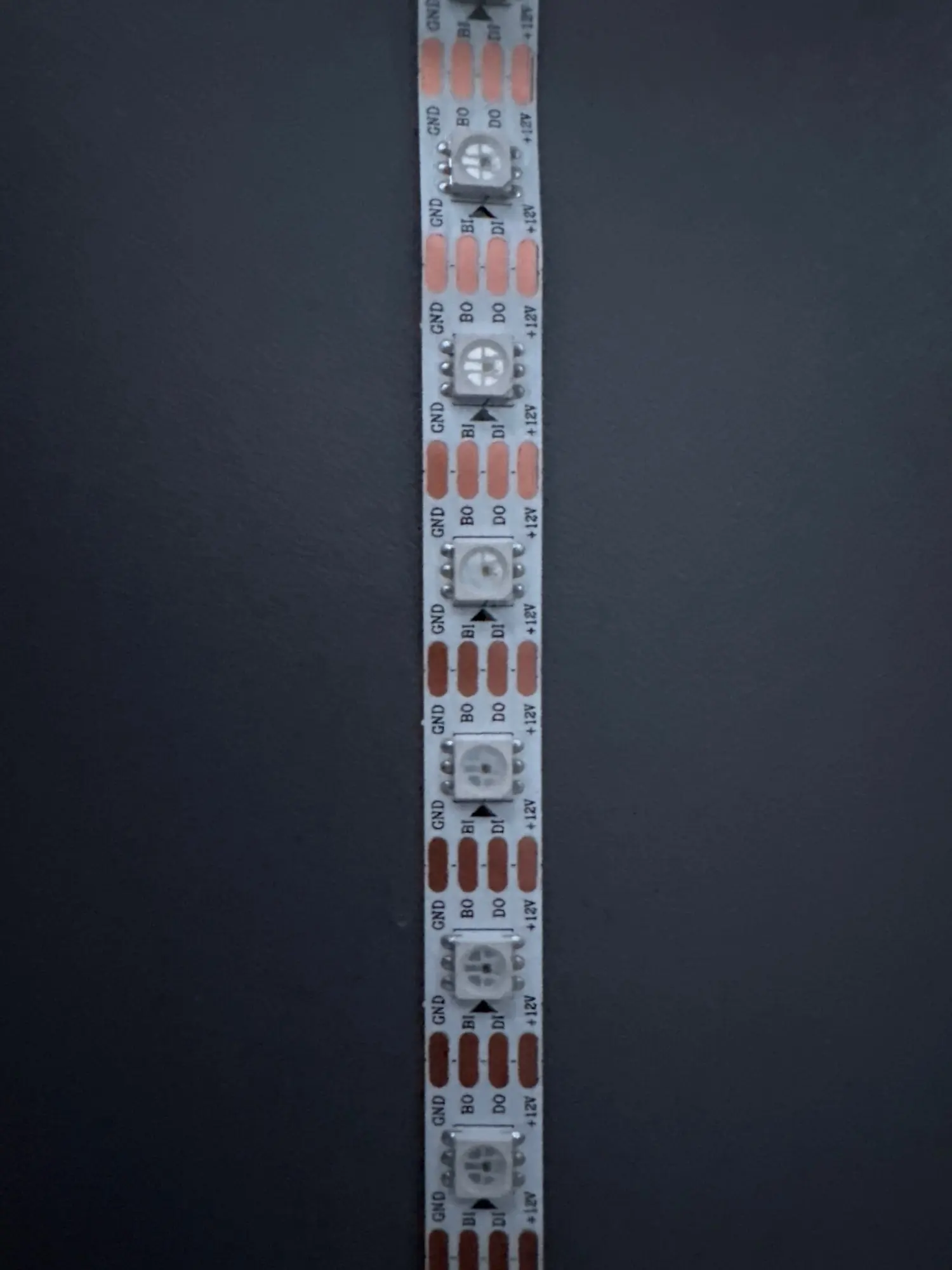

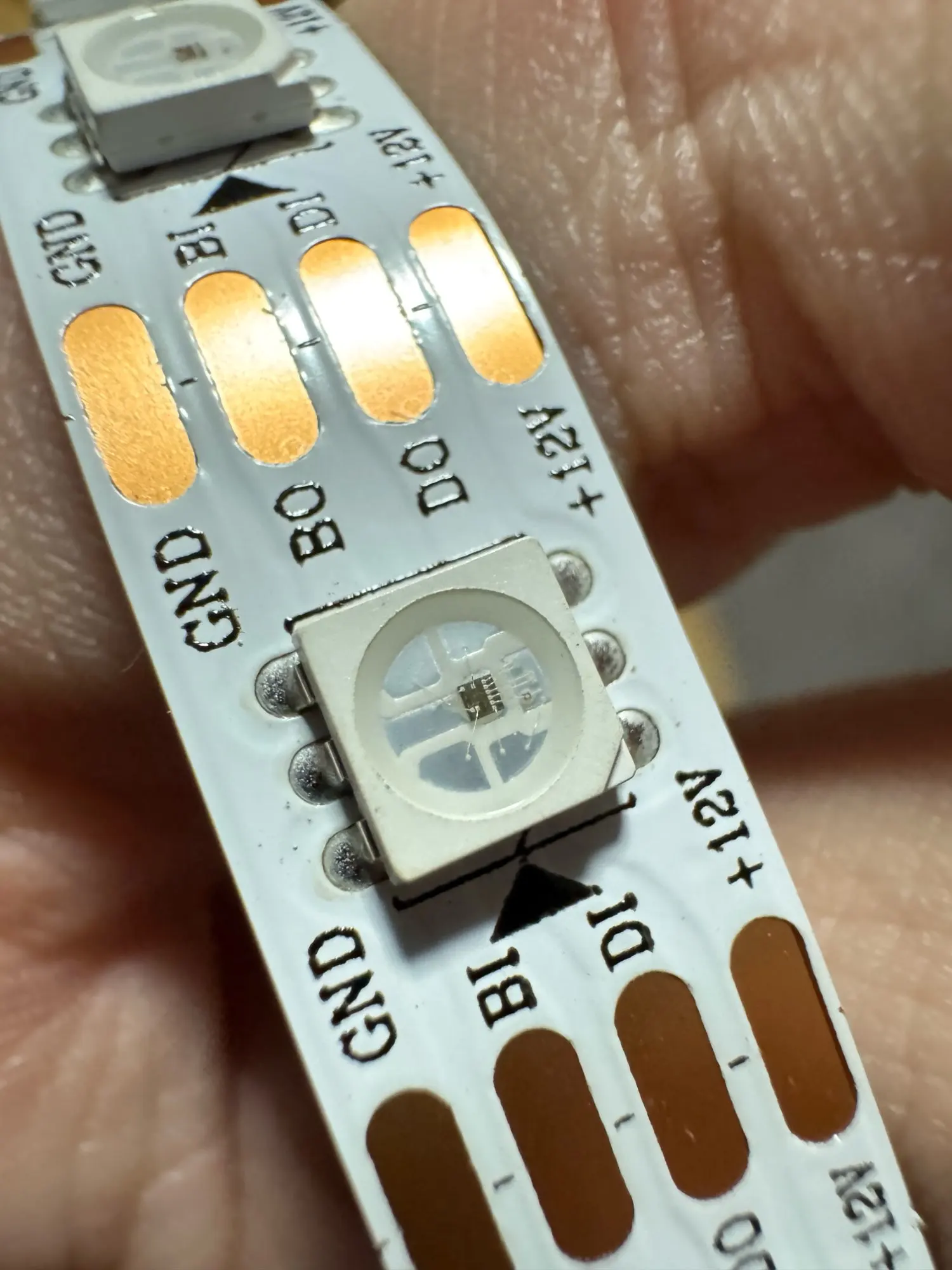

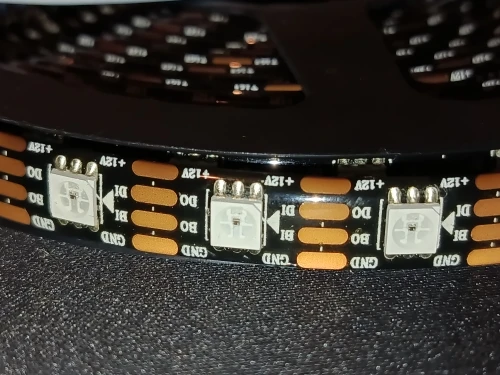

WS2815 LED Strip:

Input voltage:.............DC12V;

Power:.......................30leds/m----9watt/meter

.......................60leds/m----18watt/meter

.......................144leds/m----34watt/meter

LED resource:...........WS2815 led(5050 SMD RGB LED with built-in improved version of ws2811 ic)

LED: ...............Each LED is separately controlled

IC Type: ....................Improved Version WS2815 IC(built inside the 5050 smd rgb led)

of IC: ..................(1 IC drives 1 led chip);

Pixels: .........30/60/144/meter;

Pitch: ........................16.6mm(1000/64);

Grey scale: ...............256;

Bits/color: .................8-bits/color;

FPC Width: :..............30leds/m----10mm

.....................60leds/m----10mm

.....................144leds/m----12mm

FPC color: .........White/Black PCB

Protection rate ......IP30/ IP65 /IP67

Colors: .......................Full color RGB, dream color changing;

Cuttable:.....................every LED is cuttable;

Package: ...................in anti-static bag,IP30 IP65 with 3M adhensive tape on the back(IP67 without 3M adhensive)

Working temperature...............-40 ~ 70 °C

Storage temperature...............-50 ~ 80 °C

Source life ...............50,000 hours

Connector ...............4PIN Connector terminal pair

(Red: 12V power , Green: Date line, Blue: standby date line,Black: GND)

5 stars: 95 (95%)
4 stars: 5 (5%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

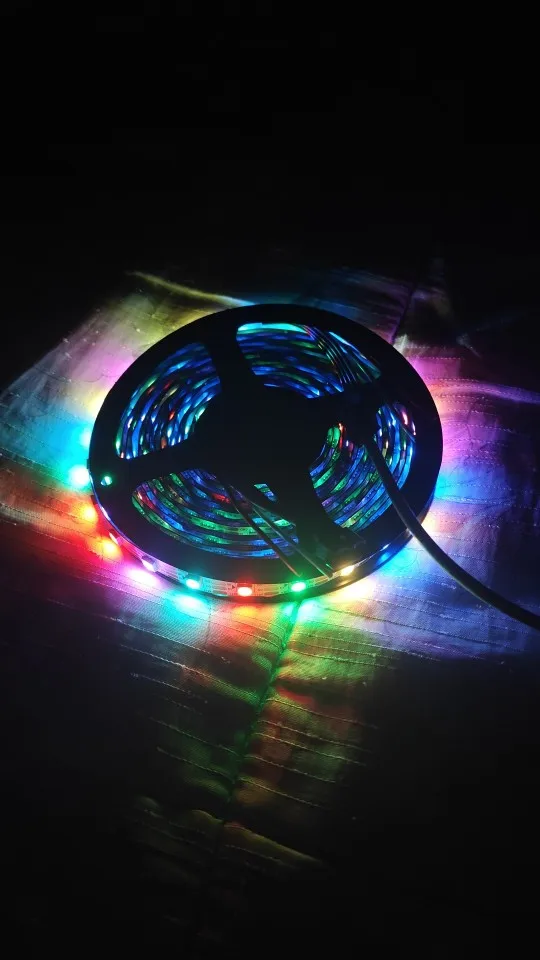

Everything works! All diodes light up and can be programmed! The waterproof feature is cool.)

Amazing strips, the white is surprisingly good for rgb leds, and it's pretty bright even in broad daylight. the durability is also very good, one of my friends accidentally sat on the strip before i installed it, and it worked like nothing happened. using it with the sp548e controller.

The LEDs work wonderfully!

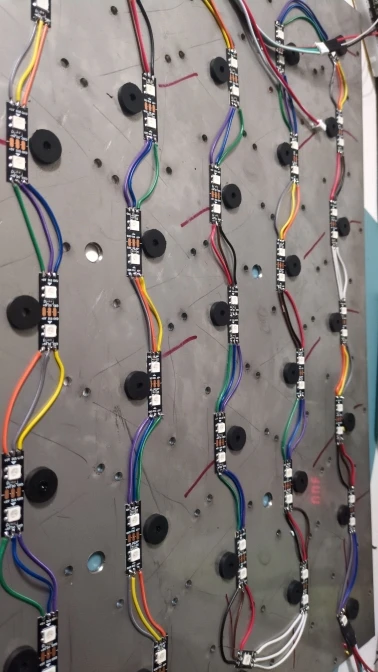

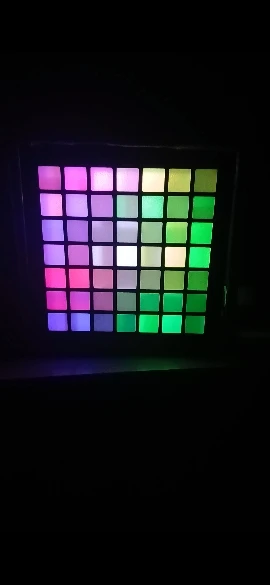

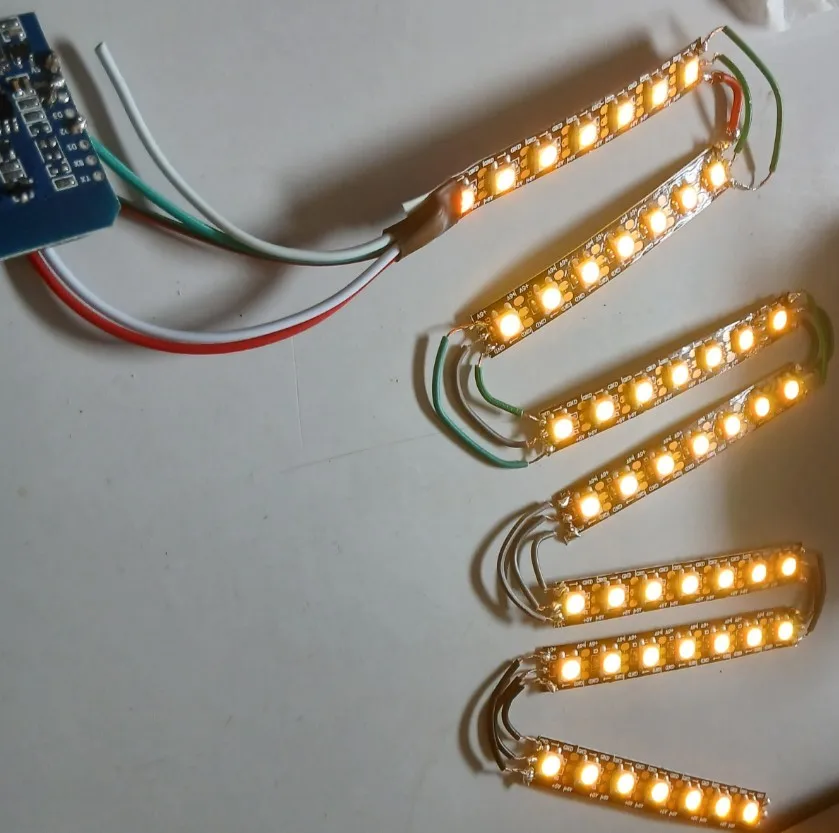

I used them to make an LED matrix, and the result is excellent.
I am satisfied with the product.

Matches the description! Initially wanted to order 1-2m, but it's good that I ordered 5m. In practice, 5m turned out to be not so much. Satisfied with the purchase! Recommend!

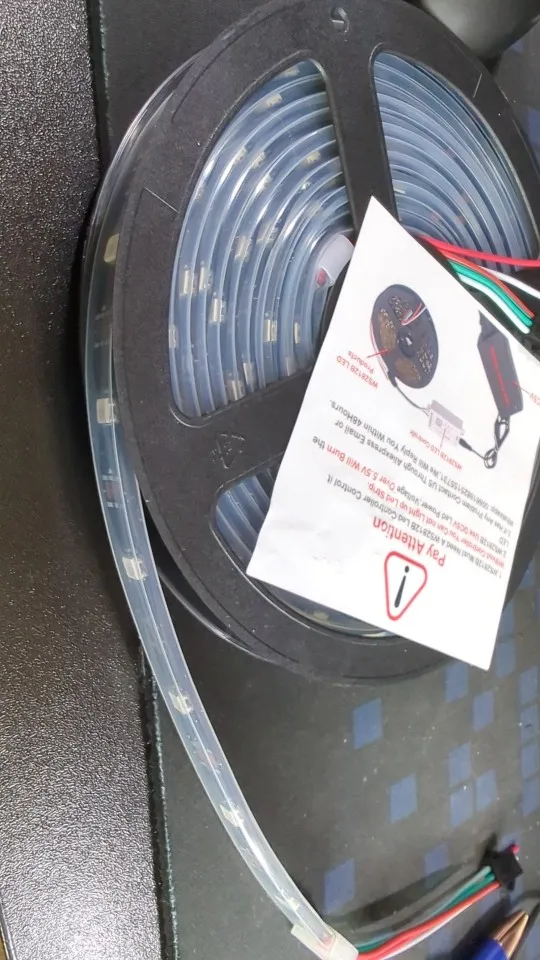

Looks good. I didn't look carefully and purchased ip67 one which does not have adhesive tape and is fully covered by silicone. I am planning to cut it, so...
Otherwise it is good.

The product is of very good quality, completely satisfied with what was ordered and delivered.

Excellent performance, all LEDs are functional.

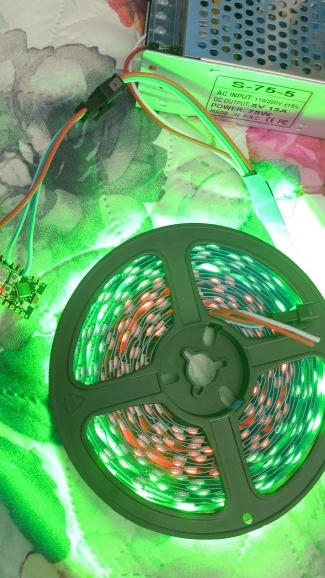

I did a test with the ESP32 C3 SUPERMINI, a 5V 15A power supply, and this 5-meter LED strip with 60 LEDs per meter at 30% brightness to avoid burning out the power supply, since at 100% brightness on the 5 meters at least 18A is required.

As always, it arrived super fast... this store is really great.

Fast shipping, works as described. But it's better to pay a little extra and get the 2815 to control each LED separately, because in x3 LED it doesn't allow to unlock the full potential :).

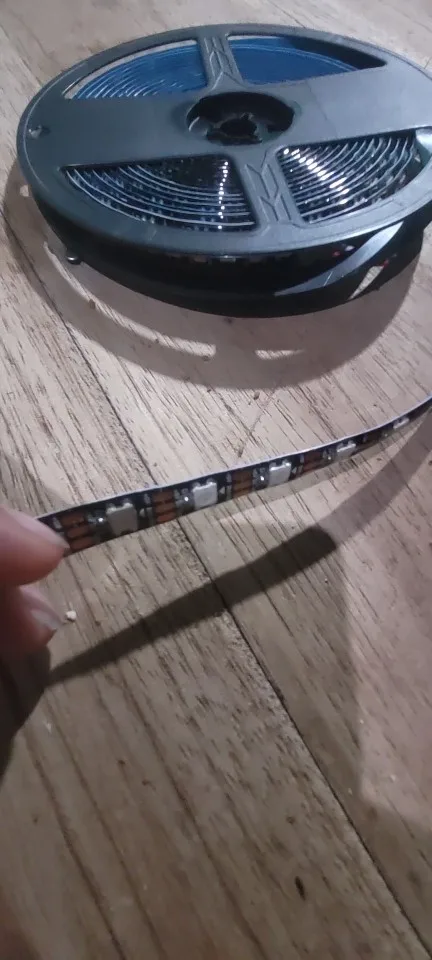

The LED strip is great, exactly what I ordered. It comes with double-sided adhesive tape on the back, so it's quick to install. It's perfect for projects with microcontrollers, connects easily and works like a charm. I like that each LED is independent and you can control the colors separately for each one. I recommend it, it does its job!

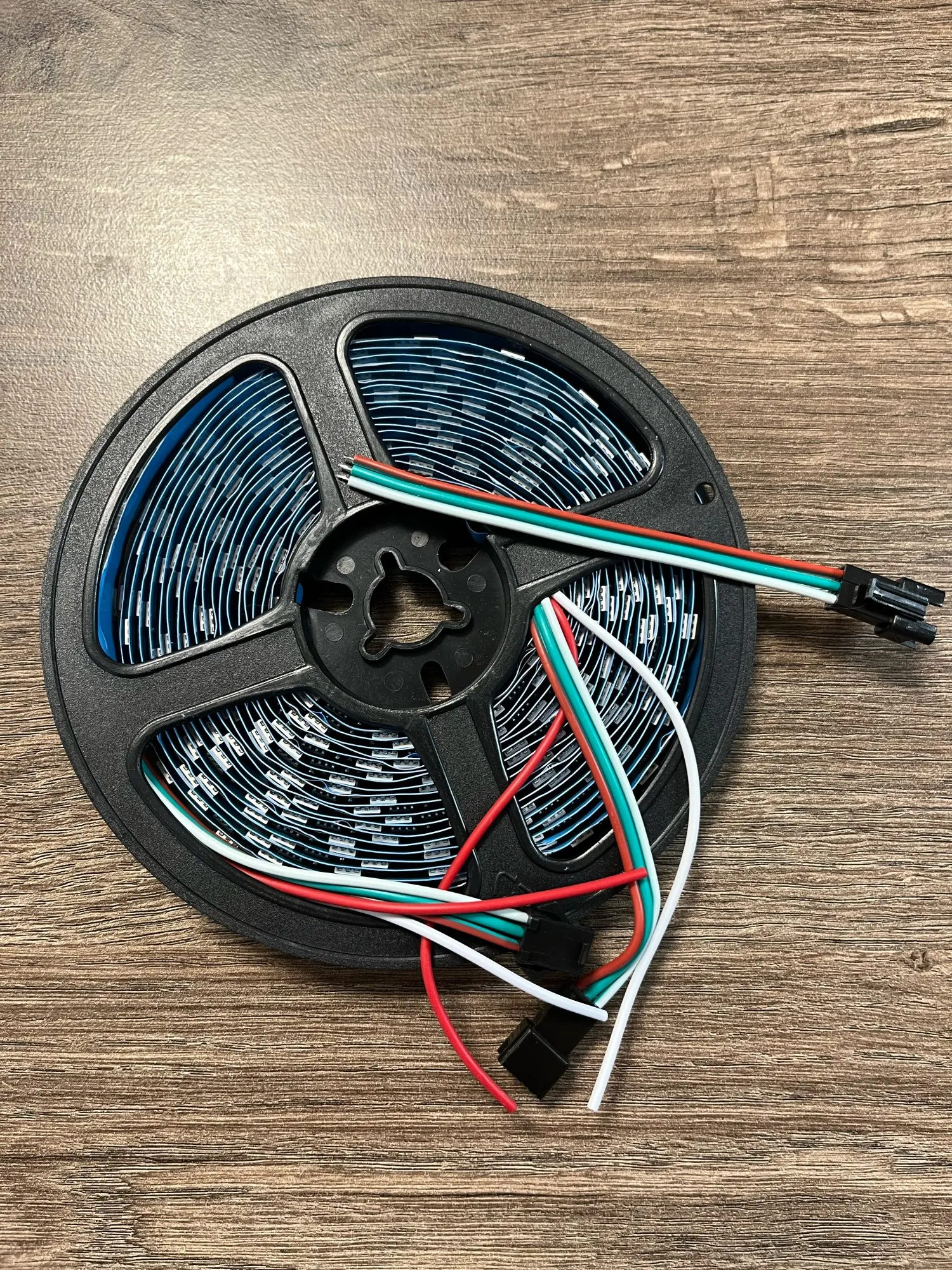

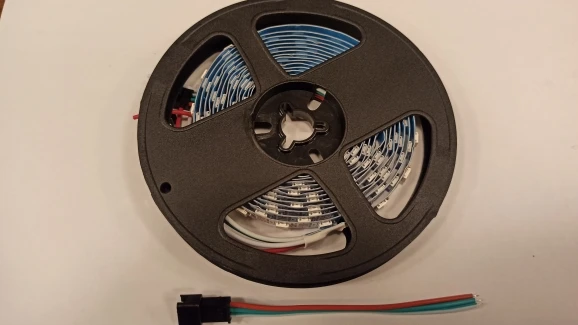

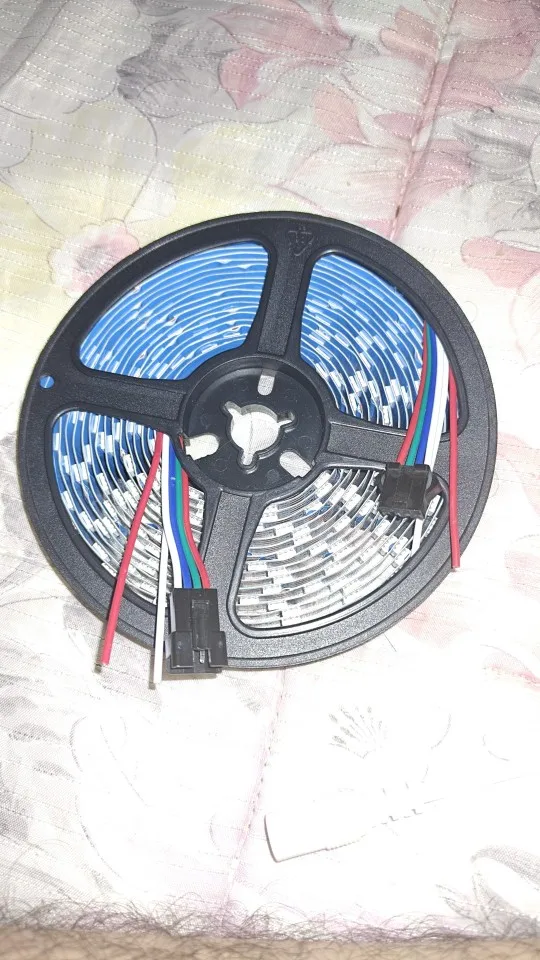

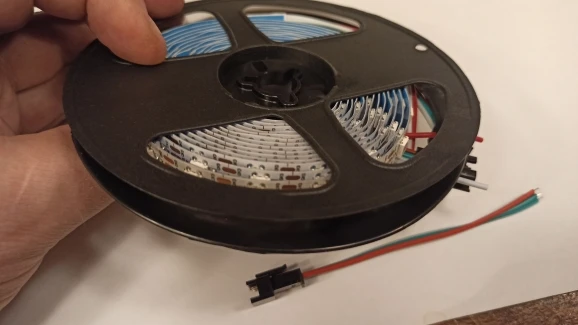

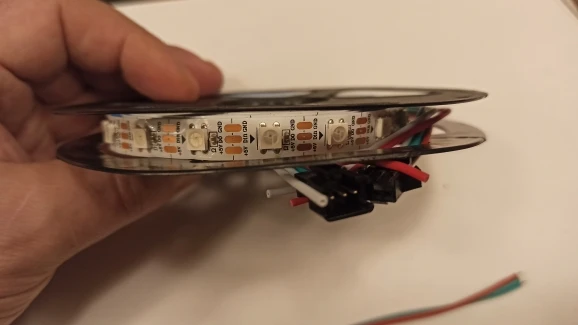

Good quality led strip supplied with front and back jst connectors. They also supply a male connector for the controller.

Very good quality LED strip. I recommend it.

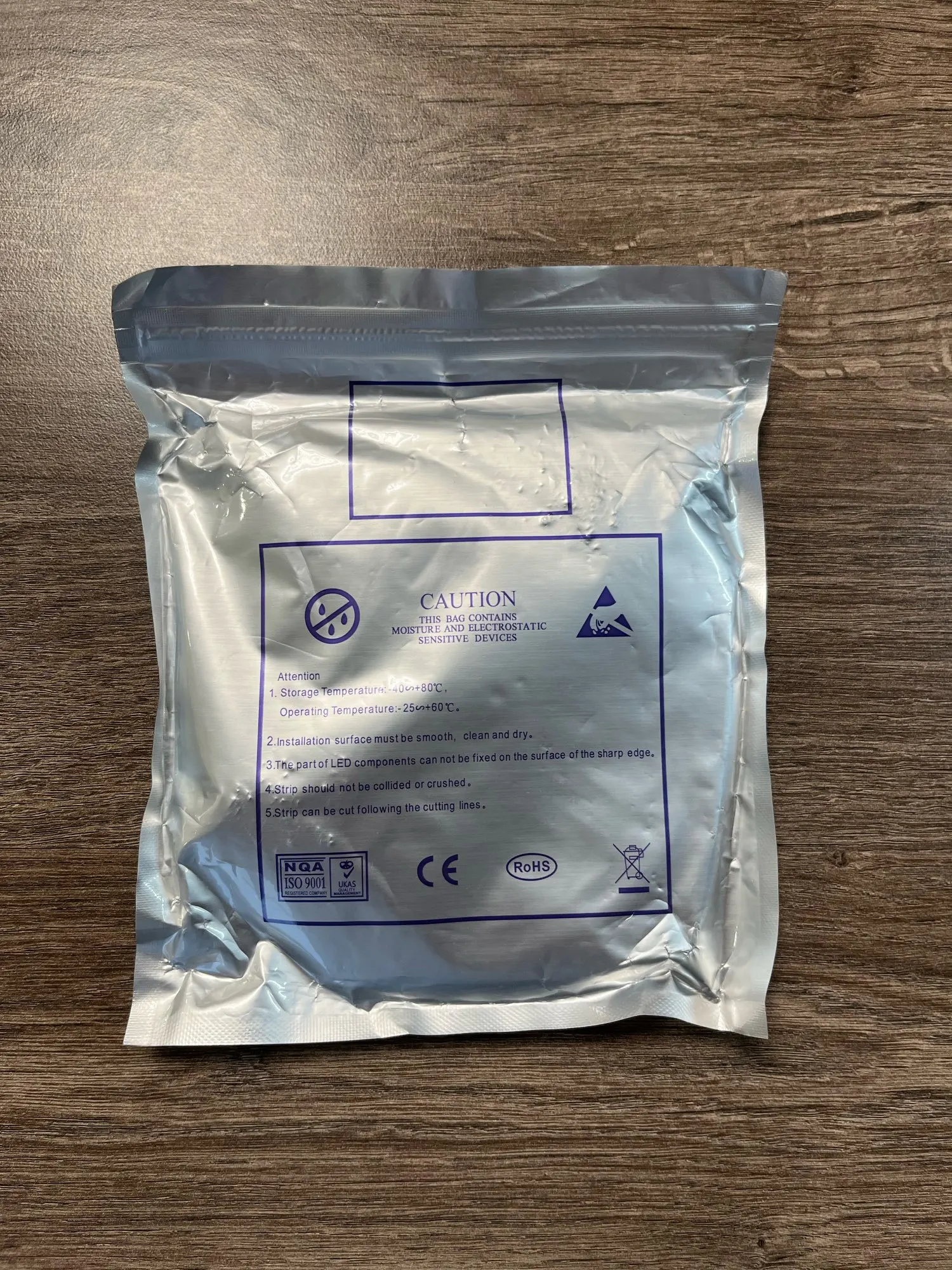

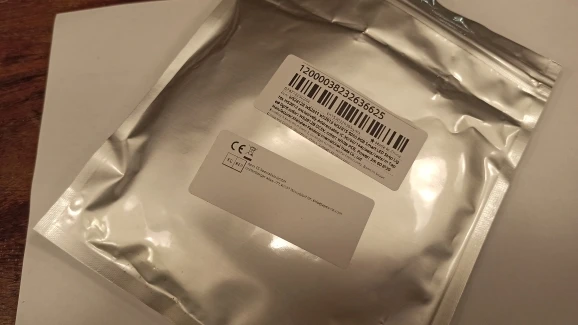

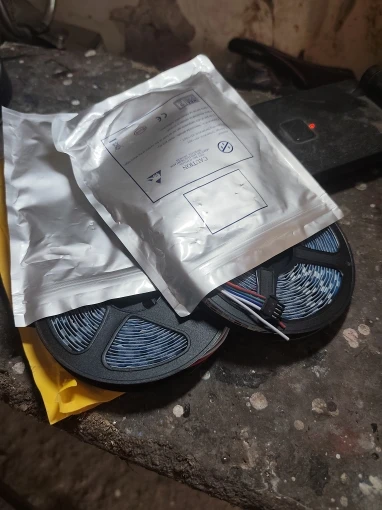

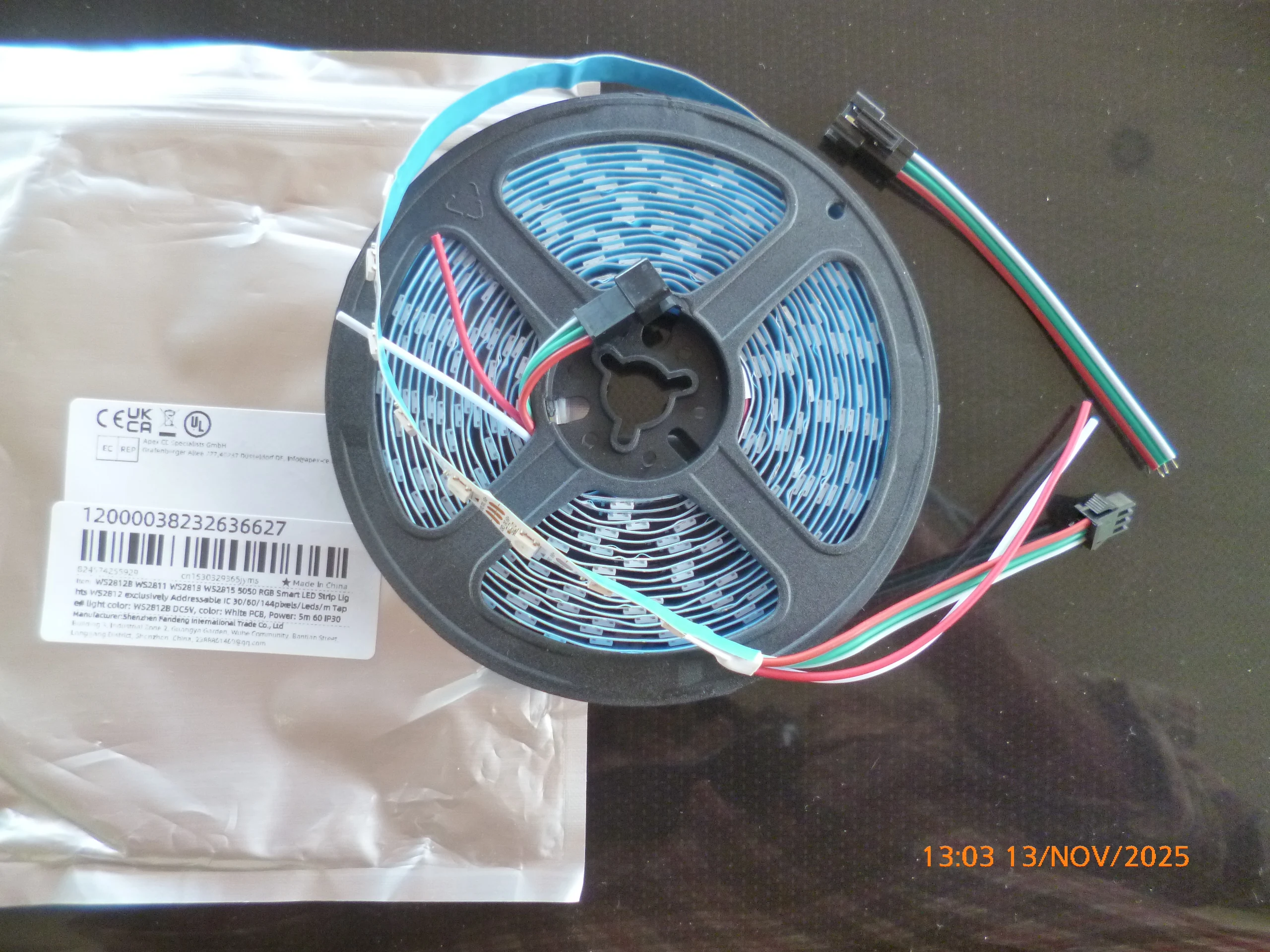

Ok, it arrived safely, standardly packed in an anti-static bag. I haven't tried the function yet. Thank you!
